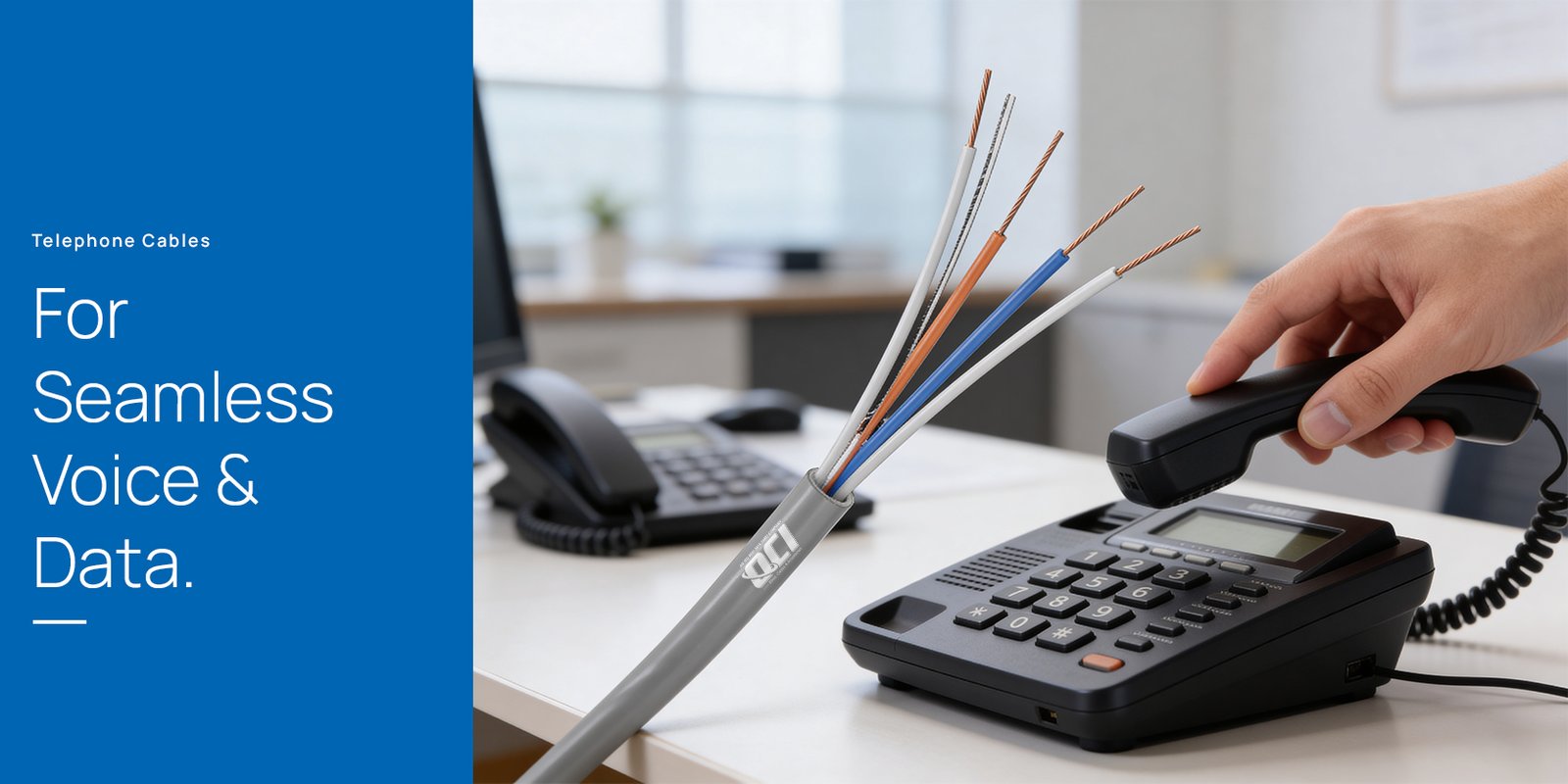

OCI Telephone Cables
OCI Telephone Cables are engineered to provide seamless voice and data connectivity across residential, commercial, and industrial networks. Built with precision and high-purity copper conductors, these cables ensure clear signal transmission, low attenuation, and reliable performance for both analog and digital communication systems.
Construction
- Copper Conductor: Electrolytic cathode grade, 99.97% purity, drawn from 8 mm wire rod
- Conductor Sizes:
Standard: Single solid conductor in 0.4 mm and 0.7 mm
On request: Single solid conductor in 0.6 mm and 0.9 mm
- Insulation: Special grade high-density polyethylene (HDPE), single-colour pressure extrusion
- Sheath: Flame-retardant (FR) PVC compound, manufactured from virgin-grade PVC resin
- Rip Cord: Nylon for easy stripping
- Pairing: Two or four twisted pairs of insulated copper wires
Technical Specification
| Conductor Standard |
Jacketing Method |
| IS 8130:1984 (with latest amendments) |
Tubular extrusion |
Applications
OCI Telephone Cables are suitable for:
- Switchboard and telephone wiring in residential and commercial buildings
- Transmission of analog and digital signals
- Wiring in faxes, modems, alarm enunciators, and intercom systems
- Data recording and acquisition systems
- General use in various telecommunication devices
Standards & Compliance
- IS 8130:1984 (latest amendments)
Certifications & Standards
ELECTRICAL PARAMETERS
